1. Introduction

In recent years, the variety of datasets collected by many enterprises has been increasing. To use and process this so called Big Data, the need for deep neural networks (DN N) is s also i ncreasing. Also, b igger datasets a re required to correctly train more complex DNNs [18], which leads to the need for large-scale computer systems that consist of more computing power and more memory. Thus, modern computer systems for deep learning have begun to use multi-CPUs and multi-GPUs. Many learning techniques are also introduced for the efficient use of such systems, such as data parallelism [1-3], model parallelism [4-7], and pipeline parallelism [8-10].

With datasets becoming larger and larger, data loading time is one of the most crucial challenges to speeding up deep learning. Modern deep learning framework, such as Tensorflow [11] and PyTorch [12],have many adjustable parameters that effect the overall performance of deep learning (e.g., [13, 14]). A dataloader is used to load data items into main memory and group them as a mini-batch for deep learning models to use. It has a lot of adjustable parameters that may affect the overall execution time of deep learning. In PyTorch, the recommended number of workers and prefetch factor, which are adjustable parameters for the dataloader, are half number of CPU cores and 2, respectively. Due to the variety of types of datasets, however, these recommended parameter values are often not the optimal. The variety of variables in a computer system (e.g., number of CPUs or GPUs, system memory size, system I/O performance, etc.) also make it difficult for users to determine the optimal parameter values for the dataloader. Fig. 1 shows that the normalized execution time of a dataloader with optimal parameters can be accelerated up to 4.73× and 2.76× compared to a dataloader with default and recommended parameters, respectively. This result suggests that tuning dataloader parameters may be a solution to improve the overall speed in deep learning.

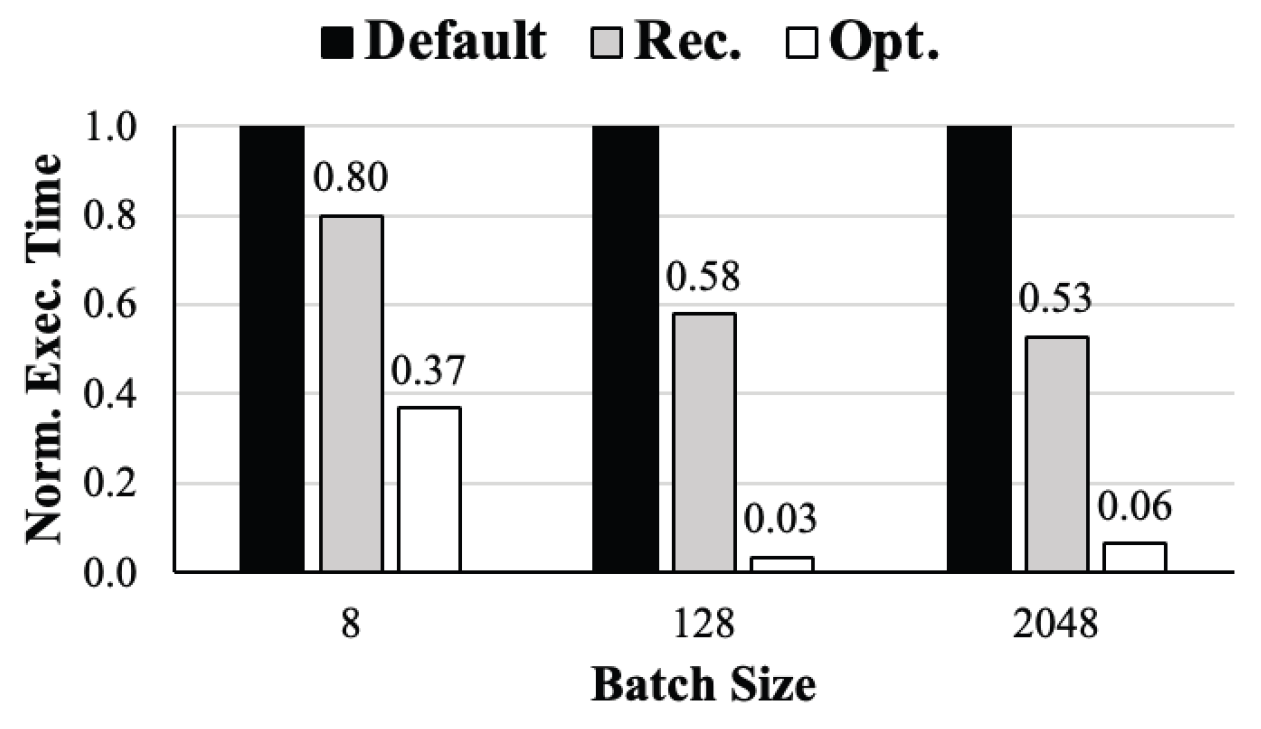

Fig. 1.

Normalized execution time for the dataloader when using default, recommended (Rec.), and the optimal values (Opt.), respectively. This result was measured using CIFAR-10 dataset with 32 by 32 image size and 8, 128, 2048 batch sizes.

Recently, many approaches are proposed such as data sampling [19, 20] and caching [20, 21]. Some research such as DeepLake [22] and Webdataset [24] converts the format of the dataset to stream the data and uses the recommended parameters for the dataloader. The data loading time of these methods (from CPU to GPU) will be the same as the dataloader that uses recommended parameters. Another method is a DALI [23] which avoids the pre-processing bottleneck in the CPU by sending all the data to the GPU and processes on the GPU itself. This makes it difficult to compare the performance of data loading from the CPU to GPU. This paper addresses improving the data loading rate by tuning various parameters of the dataloader on the CPU side.

This paper introduces an Automated Dataloader Parameter Tuning framework, ADaPT, that attempts to determine the optimal parameter values for the particular dataloader. ADaPT adjusts four different parameters to maximize and improve the effectiveness of a dataloader. The optimal values can be found using a grid search algorithm but it is too time-consuming. This is because a grid search tries all combinations of adjustable parameters that can be configured to find the optimal parameters in the GPU. To address this problem, the ADaPT uses an AVL tree and its characteristic to achieve speedup comparable to optimal parameters and reduces the time to determine near optimal parameter values.

The contributions of this paper are as follows:

1) To reduce the overall training time of a deep learning model, parameter tuning of the dataloader is investigated and certain parameters are identified that affect the performance.

2) An optimal parameter combination of tunable values are found using grid search.

3) An AVL-tree based search algorithm is proposed to reduce searching time while achieving near optimal performance.

This paper is organized as follows. The concept of the dataloader and the adjustable parameters are described in Section 2. Section 3 introduces the proposed ADaPT and main search algorithm. Experimental results are depicted in Section 4. Finally, Section 5 concludes this paper.

2. Dataloader

2.1 Procedure of a Dataloader

The process of the dataloader usually consists of four steps. First, data items are sequentially loaded from storage into main memory. Second, the loaded data is transformed into a suitable data format for future processes (e.g., padding, tensorization, or normalization). Then, the dataloader groups data loaded into main memory as a mini-batch. Finally, the dataloader transfers a mini-batch to the target device such as GPUs.

2.2 Adjustable Parameters

To improve the performance of dataloader in PyTorch [12], this paper focuses on four adjustable parameters that are dependent on system configurations for performance. First, num_workers ([TeX:] $$N_W$$) is an integer-based parameter that indicates the number of subprocesses (i.e., workers). These workers are spawned to load data in parallel. Each worker loads data from storage to main memory and transforms them into a suitable data format (called Tensor) for use in deep learning models. If num_workers is 0, the dataloader uses the main process to load and transform data. Second, prefetch_factor ([TeX:] $$N_F$$) is an integer-based parameter that indicates the total number of mini-batches equally distributed and pre-loaded to all workers. This parameter may be useful for dataloder to pre-load next mini-batches to accelerate data loading speed. Third, pin_memory (PM) is a boolean-based parameter that allows a dataloader to copy the loaded mini-batch into the fixed host memory (i.e., pinned memory) before transferring the mini-batch to a device. Pinned memory is useful when transfering data, in particular large data, from the host memory to the device memory. The last parameter is persistent_workers(PW), a boolean-based parameter, which allows workers to be reused by running the worker permanently. As default, all workers for loading data are performed once and terminated when data loading is complete. In the PyTorch framework, prefetch_factor ([TeX:] $$N_F$$) and persistent_workers (PW) are not available when num_workers ([TeX:] $$N_W$$) is 0.

The reason why the above parameters are chosen is because they do not directly affect the performance of deep learning models. Among many adjustable parameters in dataloaders, batch_size affects data loading performance (see Table 1). However, as reported in many previous studies [13, 14], adjusting batch_size affects performance of deep learning models. Thus, this paper does not investigate batch_size and only system parameters related to accelerating dataloader performance.

2.3 Impact of Adjustable Parameters

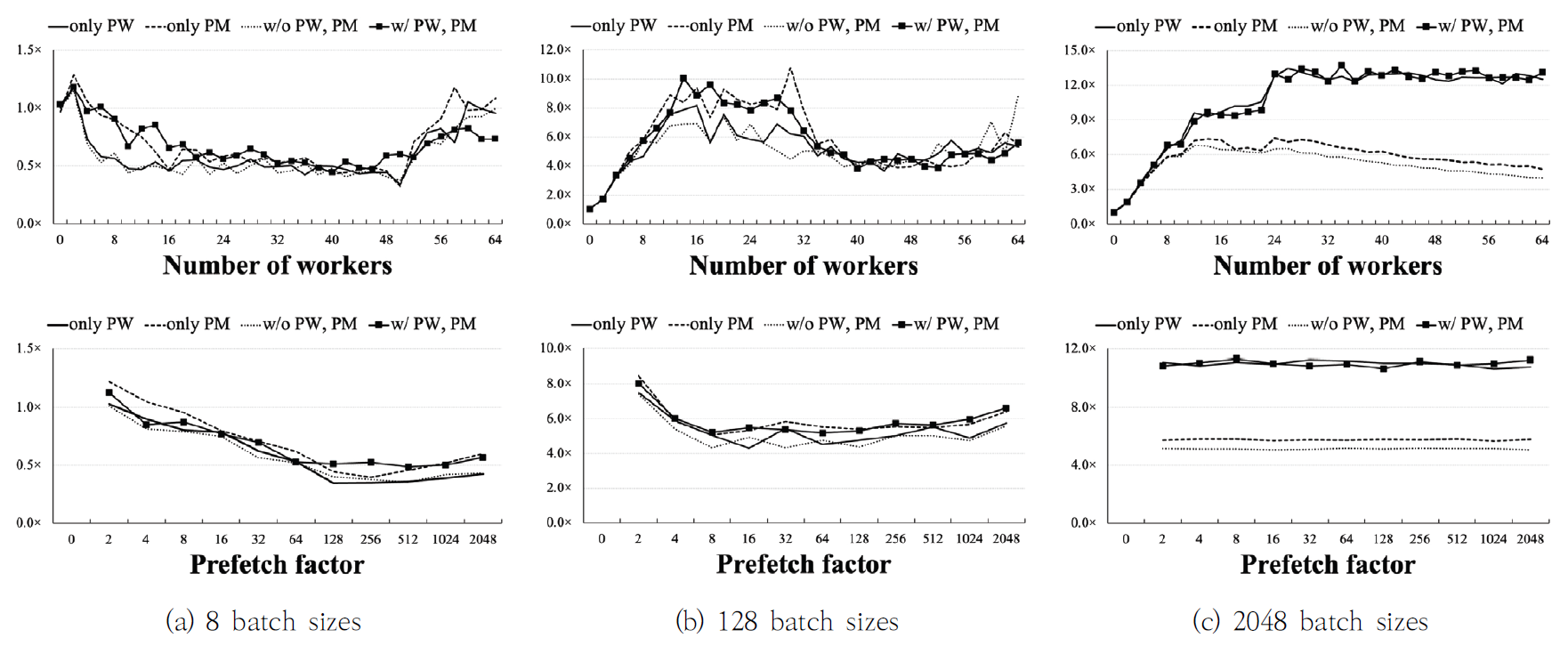

In Fig. 2, the results show the impact of each parameter for the dataloader. The experiments of these results use CIFAR-10 dataset with 32×32 image sizes and three different batch sizes (8, 128, 2048), and are tested on the system described in Section 4. In 8 batch sizes, small parameter values for num_workers and prefetch_ factor have a significant impact on the performance improvement of the dataloader compared to parameters for pin_memory and persistent_workers (see Fig. 2a). On the other hand, in 2048 batch sizes, the num_workers and persistent_workers have a significant impact on the performance improvement compared to pin_memory and prefetch_factor (see Fig. 2c).

These results suggest that it can be difficult for users to determine optimal parameter values for the dataloader given a dataset. It is also difficult to find the optimal parameters by manually substituting for all combinations of the candidate parameters. Therefore, it is important to determine the optimal dataloader parameters to improve the speedup for deep learning.

Fig. 2.

Comparison of performance improvements for each adjustable parameter.

3. The Proposed Framework

3.1 Overview

The ADaPT is a framework to automatically search for the optimal combination of dataloader parameters using AVL tree-based search in a strictly guaranteed short amount of time. Fig. 3 shows an overview of the ADaPT, which works in two main processes; i) monitoring, and ii) parameter searching. The monitoring process measures the total execution time of dataloader (e.g., data loading, pre-processing, and data transfer), and then feedbacks the measured time to the parameter searching process. In the process of parameter searching, the measured time is used to find the optimal combination of parameters using an AVL tree-based search algorithm. The ADaPT iterates between these two processes until it finds the optimal combination of parameter values or arrives at the final leaf node.

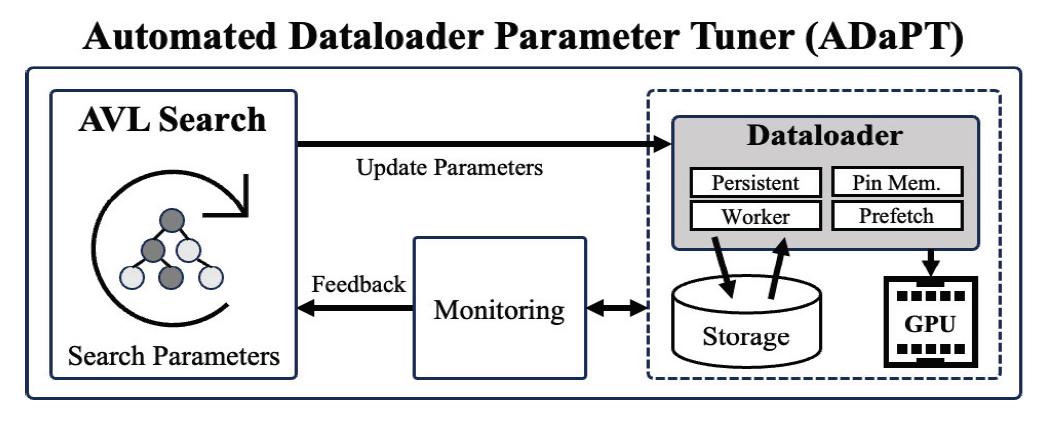

Fig. 3.

An overview of the proposed ADaPT.

3.2 AVL Tree-based Search

An AVL tree is a binary search tree, with two main characteristics; (i) the maximum height difference between the left and right subtrees is 1, and (ii) the parent node has a value larger than the left node and smaller than the right child node. Using the first characteristic, the best parameters can be found in a short time by reducing the number of parameter combinations to be searched. Based on our observations, in addition, future sub-combinations of current parameter combinations that performed poorly tend to continue to perform poorly. For examples, in 128 batch sizes (see Fig. 2(b)), parameter combinations with batch sizes smaller than 32 perform better than parameter combinations with batch sizes larger than 32. Thus, using the second characteristic of the AVL tree, it is possible to predict that future sub-combinations of current parameter combinations that performed poorly will still perform poorly, dramatically reducing the number of unnecessary searches. This is possible because the AVL tree maintains a height of [TeX:] $$\log _2 N$$ and guarantees the time complexity of [TeX:] $$O\left(\log _2 N\right)$$ for insertion, search, and deletion. Therefore, the total time complexity of AVL tree search is [TeX:] $$O\left(\left(\log _2 N\right)^k\right)$$ in the worst case when k parameters need to be found.

Note that the proposed approach does not guarantee to search the optimal parameter combinations, but it is possible to find the best parameter combinations that can perform as well as the optimal parameter combinations.

Fig. 4.

An example of AVL tree generation.

3.3 The Process of Parameter Searching

In the beginning of this algorithm, ADaPT generates AVL trees for each parameters (is shown in Fig. 4). For example, if the number of adjustable parameters is k and the number of available values for each parameter is N, the ADaPT generates k AVL trees with N nodes, where each node has an adjustable value for each parameter. Then, each AVL tree is given a priority for search. Higher priority is given to more frequently searched trees (see Fig. 5).

In the process of parameter search, attempting to search for optimal combination of parameters, AVL tree with lower priority sends the value of currently selected node to the root node of the AVL tree with higher priority (step ① as shown in Fig. 5). This process is repeated until the AVL tree with the highest priority is reached and continues to send values cumulatively up to the value received from lower priority AVL trees. Then, it passes all of the accumulated parameter values to the dataloader to measure the execution time (see step ①∼② in Fig. 5). When the execution time for a node is completed, the execution time of its children nodes are determined in the same way.

When execution time of the current and children nodes are determined, the algorithm selects the node with the lowest execution time (see step ③ in Fig. 5). If the parent node is selected, the algorithm does not search any further and returns the measured time and parameter combination to higher priority AVL tree. On the other hand, if one of children nodes is selected, the algorithm measures the children of the child node. If there are no more nodes to search, the algorithm stops searching and returns the measured time and parameter combination to higher prioritized AVL tree (see step ④ in Fig. 5). The algorithm continues to repeat the above processes until the lowest priority AVL tree returns the parameter combination (see step ⑮ in Fig. 5). This returned parameter combination from the lowest priority AVL tree will the best parameter combination found using ADaPT.

This proposed algorithm has two stopping conditions; One is when there are no more searchable nodes, and the other is when the current node is selected (is described in step ④ and ⑭ in Fig. 5). The reason why the algorithm stops searching when current node is selected is because it assumes that the parameter combinations of later nodes will not provide better speedup.

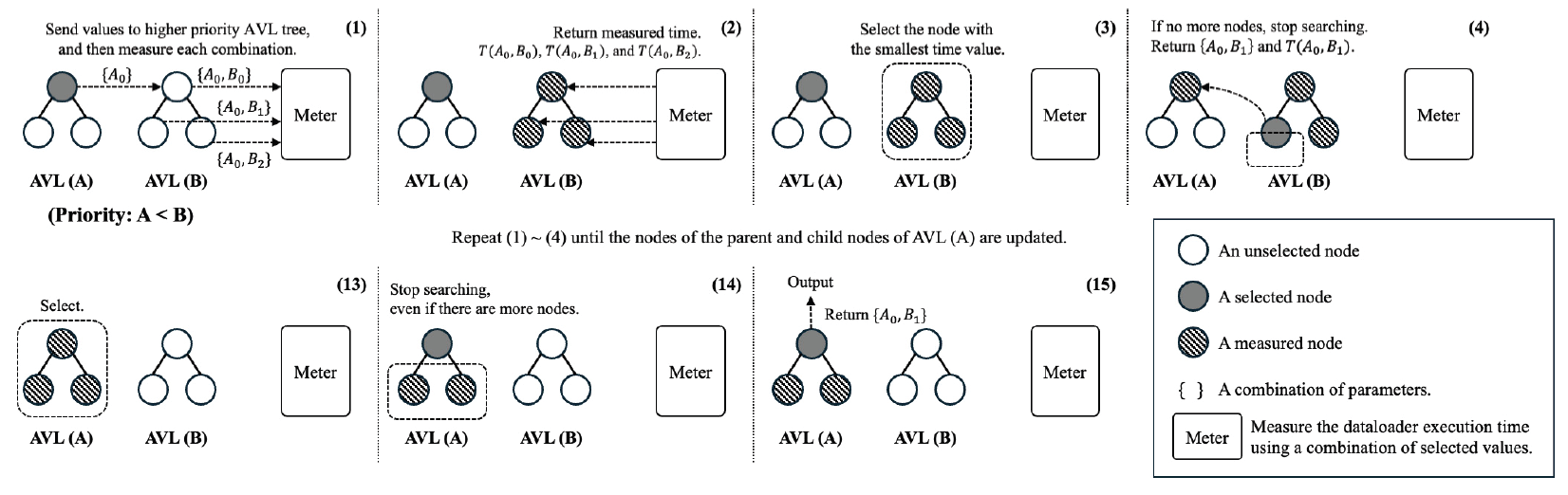

Fig. 5.

The overall process of the AVL tree-based search for searching the dataloader parameters combination.

4. Evaluation

4.1 Experimental Setup

System. The experiments tested on a system, which consists of Threadripper 3970 3.7GHz 32-Core 64-Thread processor, Titan X GPU with GDDR5 12GB memory, and 128GB main memory. The ADaPT was implementation by CUDA 11.8 version and Pytorch 2.1.2 version.

Datasets. To evaluate ADaPT performance, CIFAR-10 [15] dataset is used in this paper. CIFAR-10 dataset is widely used in image classification tasks. CIFAR-10 dataset consists of 60,000 32×32 color images in 10 classes. The image size of CIFAR-10 dataset was fixed at 32×32, which is widely used [16, 17].

Parameters. As described in Section 2, the proposed ADaPT aims to find and adjust four different parameters; num_workers [TeX:] $$\left(N_W\right),$$ prefetch_factor [TeX:] $$\left(N_F\right),$$ pin_memory (PM), persistent_workers (PW). The num_workers [TeX:] $$\left(N_W\right)$$ is starts from 1 and from 2 to 64 it is increased by 2. The prefetch_factor [TeX:] $$\left(N_F\right)$$ begins with 1 and it is increased by 2 times up to 2,048. Both pin_memory (PM) and persistent_workers (PW) are boolean-based parameters (0 (False) or 1 (True)).

Metrics. This paper only evaluates the execution time of the dataloader that includes the time to load data items from storage into main memory, preprocess them, and transfer them to the GPU. This paper also compares the performance between dataloaders using the default, recommended (Rec.), optimal (Opt.), and ADaPT parameter combinations. The recommended parameters use values mentioned on the PyTorch [12], and optimal parameters use values found by the grid search. This work also measures the time to find the optimal parameters for the grid search and the time to find the best values for the ADaPT. All experiments for the ADaPT and grid search are run 10 times and the execution time shown is the averaged value. The search time for the ADaPT and grid search is the time used to find the best combination.

Note that the purpose of the proposed ADaPT is to maximize performance (speed) of the dataloader, not to improve the training performance (e.g., accuracy) of deep learning models.

4.2 Experimental Results

Table 1 shows the results of the dataloader performance for 8, 128, and 2048 batch sizes, respectively. In the table, ‘Exec. time’ is the total execution time of dataloaders. In 8 batch sizes, the ADaPT shows 1.68× and 1.69× faster than using default and recommended parameters, respectively. For 2048 batch sizes the ADaPT performed significantly better than using default and recommended parameters, with 37.03× and 6.09× more fast, respectively. Compared to the results of the optimal parameters, the ADaPT shows comparable performance. In small 8 batch sizes, ADaPT found the 16^th ranked combination listed by grid search. In large 2048 batch sizes, the ADaPT determined that the best combination of parameters for the 21^st rank. The ADaPT selected the 1^st best combination of parameters in 128 batch sizes which is the same combination found by grid search method. This result indicates that the ADaPT selects the best combination of parameters where the dataloader execution speed is similar to the optimal combination of parameters. It should be noted that the execution time of the best combination is calculated as an average; therefore, the execution time of ADaPT and the optimal combination may not necessarily be the same even if ADaPT finds the optimal combination.

Table 1 also shows the overhead of searching optimal parameters between the grid search and AVL tree-based search. In 8 batch sizes, the AVL tree-based search shows 13.29× faster in searching time compared to a grid search. This is also 19.35× and 7.17× faster in other batch sizes, respectively. This result means that the AVL tree-based search can find optimal combination of parameters faster than a grid search.

As the above results, the ADaPT does not guarantee that it finds the optimal combination of parameters that the grid finds, but it can find the combination of parameters that performs similar in a short amount of time. In general, the time complexity of the grid search is [TeX:] $$O\left(N^k\right)$$ in the worst case. In this work, the time complexity of a grid search can be represented as [TeX:] $$O\left(N^2\right)$$ because both pin_memory (PM) and persistent_workers (PW) are boolean-based adjustable parameters. On the other hand, the time complexity of the proposed searching algorithm is [TeX:] $$O\left(\left(\log _2 N\right)^2\right)$$ in the worst case.

5. Conclusion

In this paper, an Automated Dataloader Parameter Tuning framework called ADaPT is proposed to find a useful combination of adjustable parameters for a dataloader by using an AVL tree-based search algorithm method. The experimental results show that the proposed approach succeeds in searching the best parameter combinations that performed as well as the optimal parameter combinations in a short amount of time.

In the future, we expect that ADaPT will be helpful in the research of deep learning system optimization for the reduction of data transmission time from the CPU to GPU.
